Arcam

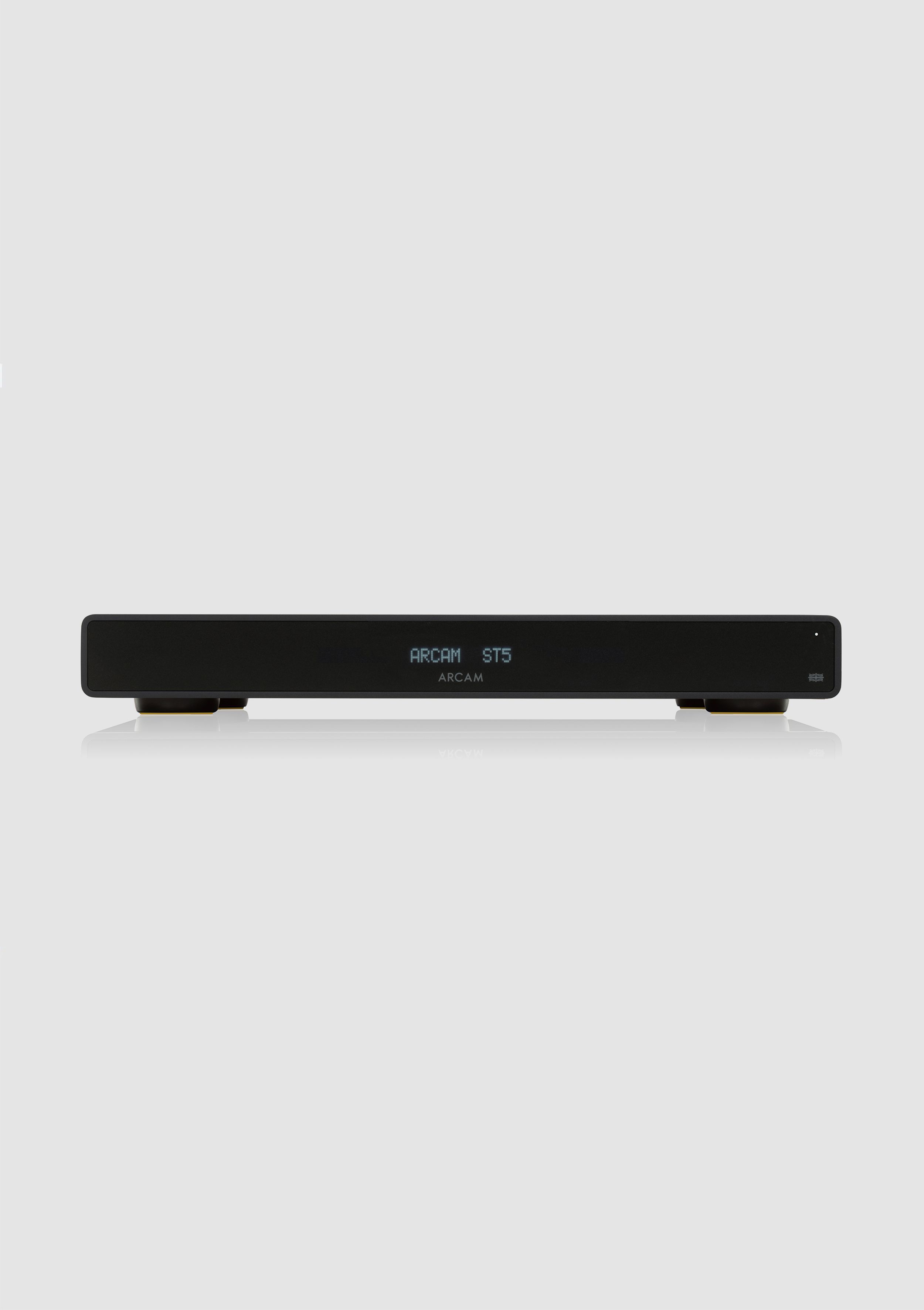

The ARCAM ST5 is the high resolution upgrade for the Radia integrated amplifiers. The slim form factor includes a control link to these amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination off ers better sound quality due to the
benefits of isolated components with individual power supplies.

The ARCAM A25 is the best sounding, and most feature rich of the Radia Integrated amplifiers. The visual luxurious highlights hint towards the more luxurious musical experience that it offers.

This is achieved with a 5th generation Class G amplifier design. You can expect the best sound quality and dynamics from what has always been a better sounding, and more efficient Class of amplifier. New components and materials have been painstakingly analysed and reviewed to ensure uncompromising sound performance.

2 channels driven, 20Hz - 20kHz, 8Ω 100W

Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%

Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB

Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB

USB-C 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1

Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1

Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1

Supported DSD USB-C only 1024, 512, 256, 128, 64

Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB

Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 110dB

Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V

Mains voltage 100V or 110–120V or 220–240V, 50–60Hz

The ARCAM A5 is for those intimate listening experiences with your favourite music.

Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%

Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB

Extremely efficient class A/B amplification

Total harmonic distortion + noise = 0.003%

Mains voltage: 110–120V or 220–240V, 50–60Hz

The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

4 x 50W Class AB amplification (8ohm, 20Hz-20kHz, 0.2% THD)

Continuous power output at 0.2% THD per channel

Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 70W / 50W

Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 90W / 60W

Harmonic distortion, 80% power, 8Ω at 1kHz - 0.003%

Power consumption (idle, typical): 90W (Thermal dissipation approx. 340 BTU/hour)

The ARCAM CD5 is for those intimate listening experiences with your favourite music on Compact Disc.

ARCAM has been a pioneer of Compact Disc playback since the development and introduction of the Delta 70 CD player in 1986, our own ground up design. The experience of producing
high quality digital audio products since then has been poured into the ARCAM CD5. Hi-res audio playback capability is included for FLAC and WAV encoded CD and USB files.

Supported media: CD (Audio), CD-R (Audio / Data), CD-RW (Audio / Data), USB-A (Data) Supported fi les (Data): WAV (LPCM), FLAC, MP3, AAC, WMA
Supported Bit depth:16 bit – 24 bit
Supported sample rates (kHz): 32, 44.1, 48, 88.2 (WAV & FLAC only), 96 (WAV & FLAC only) Outputs: 1x Analgue Stereo (RCA) pair, 1x Digital Coaxial (RCA), 1x Digital Optical (Toslink) Frequency Response (fi lter 1): 20Hz - 20kHz ±0.05dB

Max Analogue Output (0dBFS): 2.1V rms
SNR (A-wtd, ref. 16-bit/24-bit, 0dBFS): 93dB/115dB
Mains Voltage & Power Consumption: AC 100-240V, 50/60 Hz, 12W
Supplied Accessories: Mains lead(s), Remote control with 2 x AAA batteries, Quick Start Guide, Important Safety Instructions


The ARCAM A15 is the power house, with 80 Watts of output per channel. It is perfect for listening with tower speakers, in larger rooms, and more exuberant listening volumes.

Maximum output level (RMS) into 32Ω/300Ω 2.5V/5Vrms

A power amplifier with seven channels, each delivering 140W of power.

7 x 100W Class G amplification (8ohm, 20Hz-20kHz, 0.2% THD)

Class G amplification with 20W of Class A operation

Mains voltage: 110–120V or 220–240V, 50–60Hz

Chord Electronics

Poly is a portable music streamer/player that combines with Mojo to wirelessly stream from connected devices and playback from its Micro SD, all with smartphone control. It enables hi-fi sound quality at home or on-the-go, with Wi-Fi, Bluetooth, AirPlay and network connectivity and upgrades headphone, car and home audio performance.

Rechargeable LiPo 2200mAh9-hour + playtime and fast-charging via USB

Support for all major file types including

ACC, WAV, FLAC, AIFF, OGG VORBIS, ALAC, WMA and MP3

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz,717.6kHz and 768kHz; DSD via DoP sample rates: DSD64 – DSD256 (Quad-DSD); DSD from SD card

iPhone, iPad, Android phones/tablets, Windows and Mac OS X computers and DAPs

Poly can create its own hotspot where networks/devices/countries don’t support tethering

allows configuration of connected networks (up to 32)

The 2go streamer/server transforms the abilities of the Hugo 2, adding both Ethernet and wireless streaming, plus 4 TB of microSD card storage to the DAC/pre/headphone amp

In order for 2go to perform as a fully functional streamer, a connection with Hugo 2 (DAC/Preamp/Headphone amp) or 2yu is required.

Internal battery with up-to 10 hrs (approx) playback. Desktop mode activated upon insertion of Micro USB charging cable).

Connect to (allows 2go to connect to an existing 2.4GHz WiFi network) or Hotspot mode (activated within the Gofigure app, which allows 2go to broadcast its own WiFi network with SSID and password in the eventuality that the device cannot connect to a static network).

44.1kHz – 768kHZ (16bit – 32bit) | DSD 64 to DSD 256 (via DoP)

ACC, WAV, FLAC, AIFF, OGG VORBIS, ALAC, WMA, MP3

Initial setup, configuration, and updates

Via free Gofigure app available on iOS and Google Play store

2x Onboard Micro SD card slots (up-to 4TB of total storage)

Roon endpoint, DLNA (server and render), AirPlay, Bluetooth audio (A2DP), Tidal, Qobuz, Internet radio

The 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler.

In order for 2yu to inherit streaming/music transport capabilities or function as an audio interface, a connection with 2go is required.

Micro USB (5v 1amp minimum required) – through 2go

44.1kHz – 768kHZ | DSD 64 to DSD 256 (Dependant on output)

Integrated, automatic downsampling is provided if a higher sample rate is being played than the output can support.

USB Type-A (44.1kHz – 768kHz / DSD 256)

Gold Note

The Gold Note DS-1000 Streaming EVO is their top of the range digital source.

The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.

x AKM AK4493 PCM up to 32bit/768kHz and DSD512

LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps)

1x RCA coaxial PCM (asynchronous up to 24bit/192kHz)

1x AES/EBU balanced PCM (asynchronous up to 24bit/192kHz)

2x TOS-Link PCM (asynchronous up to 24bit/192kHz)

1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz

1 x USB-A port: DSD256 and PCM up to 32bit/384kHz – Formatted in FAT32/NTFS (32Gb max for pen drives)

1 x RCA unbalanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x XLR balanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x 6.3mm Headphone Output on front panel

Goldmund

A convenient wireless hub that connects all the sources – TV, computer, players and audio servers.

In1 RCA S/PDIF.
In2 Toslink optical.
In3 USB Audio Class 2.0 (no driver required on Mac OS X as of v.10.6.4 nor on Linux, driver required only for Windows).Any inputs from 1 to 3 can receive stereo audio encoded signal up to 384 kHz/Bit depth up to 32 compatible DSD over PCM.

4 parallel Digital RCA S/PDIF 2-channel outputs.
1 Wireless outputs 4 channels max.
1 monitor headphone output (on front panel).

Nominal line voltage: 115V or 230 V (switchable).
Input voltage range: +/- 15 %.
Rated power consumption: 11 W.
1,6 A delayed fuse.
ON/OFF power switch key.
Main voltage selector.

Kaleidescape

Kaleidescape is a Movie Server. It is also the best way to watch uncompressed 4K movies standing heads and shoulders above any of the alternatives - Sky, Apple TV, DVD.

The Strata V has two Unique Selling Points!

It is compact, an almost portable version of their other models. It is limited in movie storage but that is its First Unique Selling Point. Just download 10 of your favourite uncompressed movies from the dedicated Kaleidescape website. Then watch them and delete them knowing you can download them again whenever you want as you now stored on your cloud movie library.

The second USP is that, once downloaded, you can store up to 10 movies and then view them without a network connection. So once again, great for holidays, boats and private jets.

External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground

Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)

Lutron RA3 and HomeWorks control over Ethernet

Relative humidity: 20 to 80% (operation) 5 to 90% (storage)

Maximum operating altitude: 10,000ft (3,048m)

Silent in most installs, 17dB(A) when downloading in hot environments

Minimum 2in (5cm) space at the rear MOUNTS (sold separately)

Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space

Wall mount available for mounting behind TV displays

Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p

Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only

Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable

HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)

Digital (coaxial RCA and TOS-link connectors)

Audio formats (Coaxial RCA and TOS-link connectors)

Standalone: Internal 960GB SSD (available storage for ~24hrs of 4K content)

Grouped: Strato V can also access content stored on a Terra when connected and grouped via local network

Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality

View recent HD additions for Strato V in the movie store

Current customers can also view their Strato V compatibility page in the movie store

Lyngdorf

The MP-40 surround sound processor from Lyngdorf Audio offers all the sonic qualities and performance of the flagship processor, the MP-60, in a streamlined design for smaller applications.

12 decoding/up mixing channels, Dolby Atmos®, DTS:X, AURO-3D®, all legacy codecs

Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz


RoomPerfect™, Subwoofer level assistant, 32 x adjustable voicing holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings)

The MP-60 2.1 is an AV amplifier equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect and the unsurpassed quality in digital signal processing.

16 decoding/up mixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs

Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz

RoomPerfect, Subwoofer level assistant, 32 x adjustable voicing holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q

Bowers & Wilkins

The most compact headed model brings all the technical advantages of a dedicated midrange enclosure – the Turbine™ Head, with its decoupled midrange cone – to a smaller footprint that’s easily accommodated in any home.

Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Turbine™ Head
Matrix™
Aerofoil™ cone bass units
Flowport

50W – 500W into 8Ω on unclipped programme

Supported Hi-res media: FLAC, WAS (LPCM), MQA, AAC, ALAC, AIFF, DSD (128) Supported Hi-res Bit depth: 16, 24
Supported samples rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
Supported media: MP3, MP4, OGG, WMA
Supported Bit depth: 16
Supported samples rates (kHz): 44.1, 48
Gapless Playback: Yes
Digital Outputs: 1x Coaxial (RCA), 1x Optical (Toslink)
Analogue Outputs: 1x Stereo (RCA) pair
Frequency response (fi lter 1): 20Hz—20kHz ± 0.05dB
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption: 12W
Power consumption (Eco standby): <0.5W
