Steinway Lyngdorf

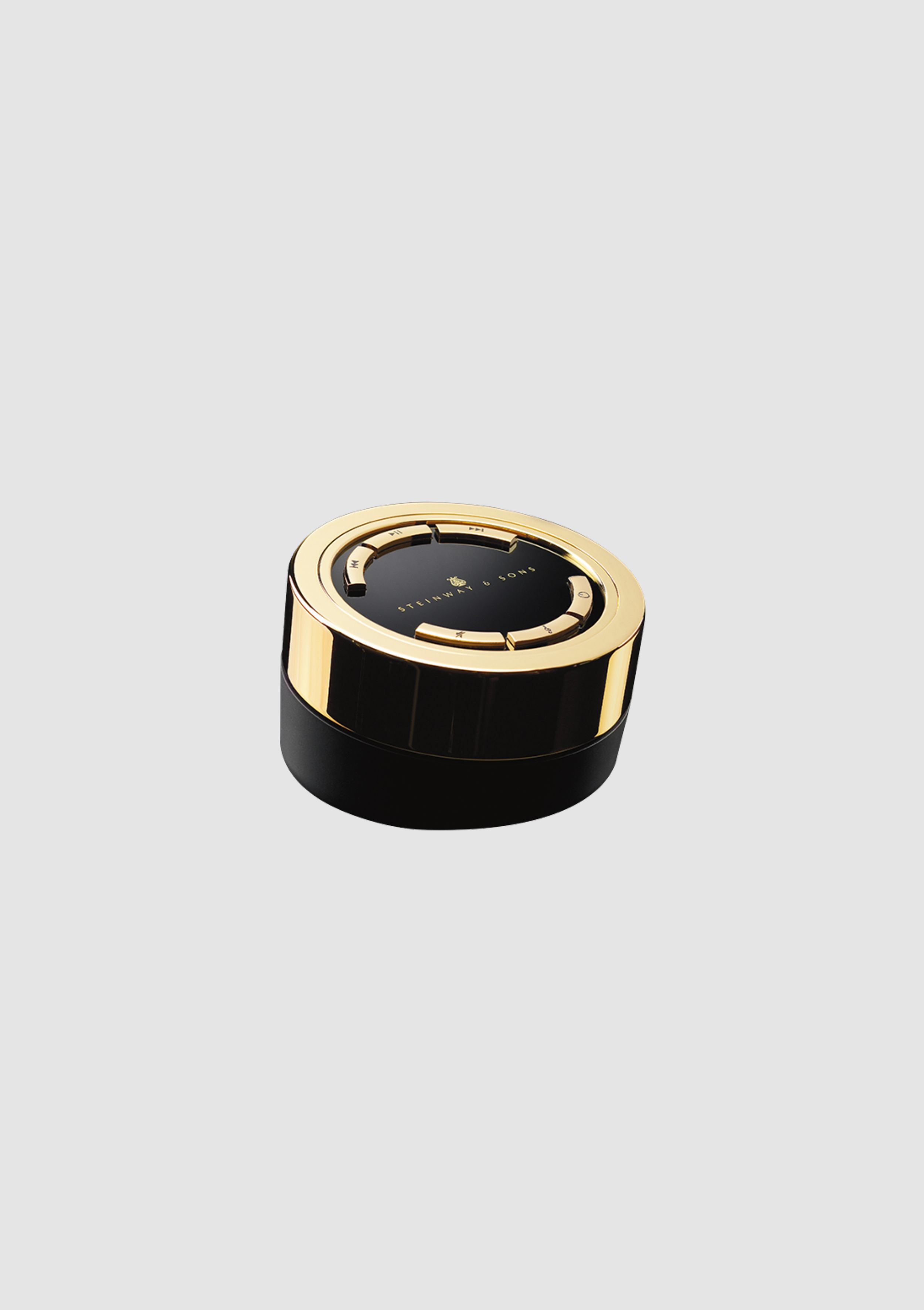

The Steinway Lyngdorf remote control for stereo and surround sound systems features a rotating wheel crafted from solid, gold-plated or chrome-plated brass and mounted on precision-machined Swiss bearings.

It’s elegance you can touch, integrity you can feel. It provides intuitive and total command of your Steinway Lyngdorf system.


Steinway Lyngdorf commits to a new level of support for the Digital Cinema Initiative (DCI) with a collection of speakers designed for the ultimate Hollywood cinema and large format screening rooms. The X speakers are made specifically for both private and commercial projects that demand the highest possible performance. Designed for dedicated in-wall use, the X speakers are based on the already high-performing In-Wall Series but offer a more powerful level of performance.

The Model D is a full range floor-standing dipole speaker which emits sound from both front and back. Unrestricted by the vibrations of conventional cabinets, it interacts with the room like a Steinway & Sons grand piano does, resulting in extremely open and life-like musicality, with no resonance and no coloration.

This full-range loudspeaker is designed to provide the legendary Steinway & Sons performance in a small package without the need for a separate woofer. The Steinway & Sons Model O functions impeccably as a surround speaker or a simple stereo setup, and its small footprint makes it a perfect alternative to wall mounted speakers.

This full range loudspeaker is designed for creating the holographic stereo reproduction of the Steinway & Sons Model D speakers through use of the dipole speaker concept – all in a smaller package.

The Steinway & Sons Model B not only looks powerful with its impressive line-up of drivers, but together with the digital crossover and true quad-amplification of the 4 x 400-watt digital amplifier, Steinway & Sons Model A2, the resulting sound reproduction is nothing short of stunning.

Steinway & Sons P300 2.1 surround sound processor from Steinway Lyngdorf is built for the demanding connoisseur, who requires the ultimate performance in immersive formats as well as stereo. With the new state-of-the-art HDMI and decoder boards, the P300 2.1 pass-through 4K-60Hz video with full decoding of 16 native channels and support of up to 256 speakers – all with RoomPerfect™ room correction and intelligent bass management.

Audio: 5 x HDMI™ (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (192kHz/24bit), 3 x S/P-DIF coaxial inputs (192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™, 1 x balanced stereo analog input (XLR), 4 x single ended stereo analog inputs (RCA), 1 x multichannel single ended analog input (RCA)
Video: 5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode ALLM) support. accepts HDR, Dolby Vision™ and HLG

Audio: 5 x Steinway Lyngdorf Digital Links (CAT 5e based), 1 x single ended stereo analog output for secondary audio output (Zone 2), 1 x SPDIF coax digital stereo output for secondary audio output (Zone 2 / Fix: 96kHz/24bit)
Video: 2 x HDMI™ (2.1b, eARC compatible)

Frequency response: ±0,5dB from 20 to 20,000 Hz

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB connectors (backup, updates + FAT32 media storage), 1 x SD card slot (backup – storage for system software and settings)

Steinway Lyngdorf commits to a new level of support for the Digital Cinema Initiative (DCI) with a collection of speakers designed for the ultimate Hollywood cinema and large format screening rooms.

The X speakers are made specifically for both private and commercial projects that demand the highest possible performance. Designed for dedicated in-wall use, the X speakers are based on the already high-performing In-Wall Series but offer a more powerful level of performance.

The Model M series is anything you want it to be. For style-conscious audio enthusiasts who prefer a discreet, customizable installation, the Model M delivers.

The system’s slim and stylish architectural speakers can be mounted on wall, semi on wall, or in wall. Whether a large home theater or an intimate living room, your environment reflects your design style. The Model M just makes it sound better.

The In-Wall series speakers are specifically designed to be placed behind acoustically transparent screens, fabric panels, and metal mesh grills. With invisible presence, the In-Wall series offers exceptional performance, versatility, and unbeatable appeal.

This series can be mixed-and-matched with any other item in our product range while maintaining the outstanding performance of each individual component.

Gold Note

The Gold Note DS-1000 Streaming EVO is their top of the range digital source.

The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.

x AKM AK4493 PCM up to 32bit/768kHz and DSD512

LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps)

1x RCA coaxial PCM (asynchronous up to 24bit/192kHz)

1x AES/EBU balanced PCM (asynchronous up to 24bit/192kHz)

2x TOS-Link PCM (asynchronous up to 24bit/192kHz)

1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz

1 x USB-A port: DSD256 and PCM up to 32bit/384kHz – Formatted in FAT32/NTFS (32Gb max for pen drives)

1 x RCA unbalanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x XLR balanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x 6.3mm Headphone Output on front panel

Naim

A one-box music-streaming system powerful enough to drive the most demanding loudspeakers to fill large spaces, thanks to Naim’s incorporation of the finest class D amplification technology. Designed and engineered in Britain, this new Power Edition is a feat of 50 years of engineering innovation, culminating in our most efficient, powerful, and ecological streaming all-in-one product to date.

2 x USB Type A Socket (front and rear – 1.6A charge)

2 x Coaxial RCA (up to 24bit/192kHz, DoP 64Fs)

Serve up to 4 network-connected players via UPnP™ at full CD quality. Party Mode Streaming: Sync up to six Uniti or other Naim streamers, and control via the Focal & Naim app.

ALAC (Apple Lossless) - up to 24bit/384Hz

Gapless playback supported on all formats

Burst power 2Ω
(1kHz for 20mS, repeat 500mS IHF)

Digital inputs: -10.6dBfs (max. sensitivity: -18.25dBfs)

Analogue inputs: 770mV (max. sensitivity: 65mV)

Signal to noise ratio ref 1W 8Ω A-weighted

Signal to noise ratio ref 100W 8Ω A-weighted

Focal & Naim app control (iOS and Android), Bi-directional ZigBee remote

Update your system wirelessly via the Focal & Naim app.

Ethernet (10/100Mbps), Wi-Fi antennas (802.11 b/g/n/ac) built into heatsink (patent GB2524815B)

120W
(Power consumption will vary depending on the size and type of attached USB devices)

With the NSS 333, you can play the latest streaming platforms (Spotify Connect, Apple Music, TIDAL, and Qobuz), as well as listen to your favourite internet radio stations. Thanks to the integrated AirPlay2, Chromecast, UPnP™, Roon Ready and Bluetooth® AptX technologies, streaming your content from your smartphone or tablet is simple and uncompromising. For a complete home audio experience, the NSS 333 is multi-room compatible with all other Naim streaming products.

Bi-directional ZigBee remote and front panel. Control of NAC 332 via ZigBee

Optical 3.5mm output for synchronised control of compatible products e.g. NAP 250/350

1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)

1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)

Distortion - Digital: 0.002% @0dBFS, 1kHz, volume at 0dB, 1kHz

Crosstalk - Digital: 94dB at 1kHz, volume at 0dB

Analogue 1 x XLR pair (balanced, 2.1Vrms) 1 x RCA pair (2.1Vrms)
1 x 5-pin DIN

Digital (S/PDIF) - 1 x coaxial BNC (up to 24bit 192kHz)

Signal-to-Noise Ratio - Digital: 108dB ref 0dBFS A-wtd, volume at 0dB

Frequency Response - Digital: 3Hz to 27kHz -3dB

Power Consumption - Typical use consumption: 25W, Network standby mode consumption: <2W, Standby mode consumption: <0.5W

Network Storage - Ethernet (10/100Mbps), Wi-Fi (802.11 b/g/n/ac)

USB - 2 x USB Type A socket (front and rear - 1.6A charge)

The Model C speakers is for those who seek the live dipole sound and demand enhanced bass for music and movies.

The Steinway & Sons P100 is equipped with the advanced technologies for which Steinway Lyngdorf is known, including RoomPerfect™ and fully digital signal processing. P100 supports all video resolutions up to 600MHz pixel clock, including 4K with the new high dynamic range formats. With the built-in media player, the P100 is ideal as a media center for smaller installations.

Dolby® Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, Auro-3D®, 10 channels

Audio: 1 x AES/EBU S/P-DIF input, 3 x S/P-DIF coaxial inputs, 4 x S/P-DIF optical inputs, 1 x USB audio input (≤192kHz/32bit), 1 x balanced stereo analog input (XLR), 4 x single ended stereo analog inputs (RCA), 1 x multichannel single ended analog input (RCA), 1 x microphone input (XLR – Video: 3 x HDMI™

Audio: 5 x Steinway Lyngdorf Digital Links (CAT 5e based), 1 x single ended stereo analog output for secondary audio output, 1 x SPDIF coax digital out- put, 1 x HDMI™ – Video: 1 x HDMI™ – ARC compatible

RS232, Ip, Web interface, Ihiji, Remote Control App on iOS and Android platforms
