Ruark

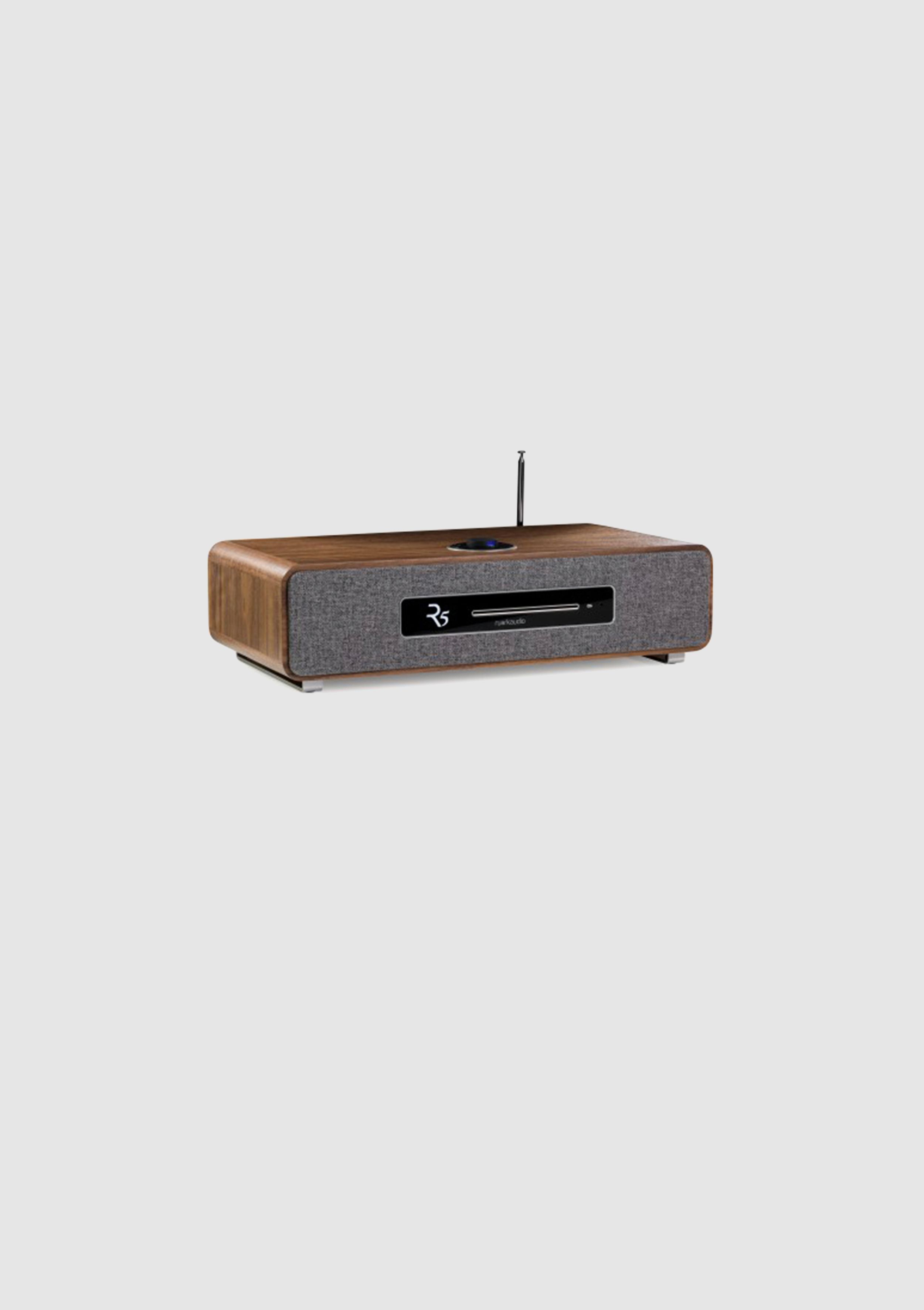

A scaled down version of the iconic R7. R5 is also multi-room ready and if desired can be wirelessly linked with other models to provide beautiful sound all around your home. Perfect on its own or with a TV as a complete home entertainment solution.

A comprehensive yet compact music system that includes both smart radio as well as CD player and wireless connectivity.

Frequency response: 40Hz – 20kHz
Drivers: 2 x 75mm Ruark NS+
Amplifier: 30W Analogue class AB
Enhancements: Bass, treble, loudness, 3D audio
DAC/ADC: up to 24-bit 192kHz

Radio: DAB/DAB+, FM with RDS (87.5-108MHz) and Internet Radio
Radio presets: 10 presets in each mode
Bluetooth V4.0, SBC, AAC, A2DP, aptX
Wi-Fi: 802.11b/g/n; WPS2 setup, WEP, WPA & WPA2
Ethernet: RJ45
Music services: Spotify Connect, Amazon Music, Deezer, Tidal
Media: Compatible with UPnP™ DLNA media servers; MP3 up to 48kHz 320kbps, AAC up to 96kHz 320kbps, FLAC up to 24-bit 48kHz, WAV up to 16-bit 48kHz and 24 bit 44.1kHz, WMA up to 44.1kHz 320kbps
CD support: CD, CD-ROM, CD-R/RW discs; MP3, WMA & AAC up to 320 Kbps
Line-in: Stereo RCA input (max 2.3Vrms)
Optical input: TOSLINK digital input (24-bit 192kHz)
Line-out: Line-level stereo RCA (2.0Vrms)
Headphone: 3.5mm jack, 25mW into 16-32 Ohm
USB 2.0: Fat32 memory stick playback, 5V 1A (5W)
Aerial: Removable telescopic
Aerial connector: 75Ω F-type connector
Power adapter: 100-240VAC 50-60Hz input 14VDC 2.85A 40W output, 1.8m cable, 2.1 x 5.5mm DC plug
Power consumption: 1.6W network standby, 5.0W idle

R3 Compact Music System, universal power adapter with regional plugs, remote control, remote control batteries, telescopic aerial, aerial spanner, quick start guide.

A premium compact and minimal bluetooth radio with DAB/DAB+/FM radio connectivity.

Frequency response: 55Hz – 20Hz
Driver: 75mm Ruark NS+
Amplifier: 9W
Enhancements: Adjustable EQ, loudness
Cabinet type: turned reflex enclosure

Digital radio: DAB / DAB+
Multiregional FM: World, USA, Japan, Korea
Bluetooth V4.2 SBC, AAC, BLE, A2DP Line-in 3.5mm stereo jack (1.4Vrms max) Headphone 3.5mm jack, 25mW into 16-32 Ohm USB 2.0, (5V 1A) MP3, AAC up to 48kHz 320kbps, FLAC up to 24-bit 96kHz, WAV up to 24-bit 96kHz, WMA up to 44.1kHz 320kbps External telescopic aerial 75Ω F-type connector
Power consumption: 0.7W standby, 4-8W typical
Power adapter: 100-240VAC, 50-60Hz input, 14VDC 1.5A output, 1.8m cable, 2.1 × 5.5mm DC plug

Display: High contrast OLED with auto dimming
Dual alarms: Daily, custom, weekends, weekdays
Auto-standby Automatic power saving mode DST Configurable daylight-saving settings

An ultra small unobtrusive music system perfect for your lounge, kitchen or study wherever space-saving is required.

Frequency response: 55Hz – 20kHz
Drivers: 2 x 75mm custom full-range polypropylene cone neodymium drivers Amplifier: 20W Class AB Cabinet type Tuned bass reflex Enhancements Bass, treble, loudness, 3D audio Digital to analogue Σ-Δ24-bit stereo DAC

App control: UNDOK (iOS & Android)
Multi-room: Compatible with R2 mk3 & R7 mk3
Bluetooth: V4.0, SBC, AAC, A2DP, aptX
Wi-Fi: 802.11b/g/n; WEP, WPA & WPA2 security
Ethernet: RJ45
Music services: Spotify Connect, Amazon Music, Deezer, Tidal Internet radio Media Compatible with UPnP™ DLNA media servers; MP3 up to 48kHz 320kbps, AAC up to 96kHz 320kbps, FLAC* up to 24-bit 48kHz, WAV up to 16-bit 48kHz or 24 bit 44.1kHz, WMA up to 44.1kHz 320kbps * FLAC files not supported in Multi-room mode
Aux in 3.5mm combined jack (max 2.3Vrms)
Optical in 3.5mm combined jack
USB 2.0 playback, 5V 1A (5W) charge port
Power adapter: 100-240VAC 50-60Hz input 14VDC 2.0A 28W output, 1.8m cable, 2.1×5.5mm DC plug
Power consumption: 1W standby, 7W nominal

MRx speaker, mains power adapter with regional plugs, 3.5mm optical adapter, stand, user guide

A music system with a slim profile. The R2 features a wide range of modern streaming options including Wi-Fi and Bluetooth, there is also bluetooth and USB-C playback for ultra convenient music listening.


Frequency response: 55Hz – 20kHz
Drivers: 2 x 75mm Ruark NS+
Amplifier: 18W Enhancements Bass, treble, loudness, 3D audio
Cabinet type: Tuned bass reflex enclosure

Radio: DAB/DAB+, FM with RDS (87.5- 108MHz) and Internet Radio
Radio presets: 8 presets per mode
Bluetooth: V5.0 SBC, AAC, BLE, A2DP
Wi-Fi 802.11b/g/n, WPS2 setup, WEP, WPA & WPA2
Music services: Spotify Connect, Deezer, Amazon Music
Line-in: 3.5mm stereo jack (1.4Vrms max)
Headphone: 3.5mm jack, 25mW into 16-32 Ohm
USB: 2.0 Fat32 flash drive compatible MP3 playback up to 48kHz 320kbps
External telescopic aerial 75Ω F-type connector
Power adapter: 100-240 VAC, 50-60 Hz input, 14 VDC 2.0 A output, 1.8 m cable, 2.1 x 5.5 mm DC plug
Power consumption: 1.6 W standby, 5-10 W typical

Frequency response: 55Hz – 22kHz
Drivers: Custom 20mm silk dome tweeters, 75mm polypropylene cone neodymium woofers
Amplifier: 20W Class AB
Cabinet type: Tuned bass reflex
Digital to analogue: Cirrus 24-bit stereo DAC

Bluetooth V4.0, A2DP, aptX, SBC, AAC
Aux input 3.5mm stereo jack (2.5Vrms max)
Digital input 24-bit 192-kHz optical TOSLINK
Subwoofer output RCA phono (700mVrms)
Power adapter: 100-240VAC 50-60Hz input 14VDC 2A output, 1.8m cable, 2.1 × 5.5mm DC plug
Power consumption: 0.5W standby, 9W typical

Left speaker, right speaker, AC power adapter, braided speaker interconnect cable, remote control, remote control battery (CR2025), user guide

Steinway Lyngdorf

Steinway & Sons P300 2.1 surround sound processor from Steinway Lyngdorf is built for the demanding connoisseur, who requires the ultimate performance in immersive formats as well as stereo. With the new state-of-the-art HDMI and decoder boards, the P300 2.1 pass-through 4K-60Hz video with full decoding of 16 native channels and support of up to 256 speakers – all with RoomPerfect™ room correction and intelligent bass management.

Audio: 5 x HDMI™ (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (192kHz/24bit), 3 x S/P-DIF coaxial inputs (192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™, 1 x balanced stereo analog input (XLR), 4 x single ended stereo analog inputs (RCA), 1 x multichannel single ended analog input (RCA)
Video: 5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode ALLM) support. accepts HDR, Dolby Vision™ and HLG

Audio: 5 x Steinway Lyngdorf Digital Links (CAT 5e based), 1 x single ended stereo analog output for secondary audio output (Zone 2), 1 x SPDIF coax digital stereo output for secondary audio output (Zone 2 / Fix: 96kHz/24bit)
Video: 2 x HDMI™ (2.1b, eARC compatible)

Frequency response: ±0,5dB from 20 to 20,000 Hz

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB connectors (backup, updates + FAT32 media storage), 1 x SD card slot (backup – storage for system software and settings)

The Head Unit Processor is an in-room processor and together with the gold-plated brass volume wheel, it is the perfect partner for Steinway & Sons Model O, B, C, and D speaker systems.

12 native channels, Dolby Atmos®, Dolby Digital, EX & Plus, Dolby TrueHD, DTS:X, AURO-3D®, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS 96/24, DTS-HD High Res. Audio, DTS-HD Master Audio

3 x HDMI™ (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P- DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192/24bit), 1 x microphone input (XLR) for RoomPerfect™ calibration

1 x S/P-DIF coaxial digital output (fixed 96kHz/24bit), 1 x RCA analog output

Internet radio (vTuner), Airplay, Spotify connect, Local file playback, DLNA Support (see formats here), Roon Ready

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB connectors, 1 x SD card slot, (Backup – storage for system software and settings)

The Steinway & Sons P100 is equipped with the advanced technologies for which Steinway Lyngdorf is known, including RoomPerfect™ and fully digital signal processing. P100 supports all video resolutions up to 600MHz pixel clock, including 4K with the new high dynamic range formats. With the built-in media player, the P100 is ideal as a media center for smaller installations.

Dolby® Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, Auro-3D®, 10 channels

Audio: 1 x AES/EBU S/P-DIF input, 3 x S/P-DIF coaxial inputs, 4 x S/P-DIF optical inputs, 1 x USB audio input (≤192kHz/32bit), 1 x balanced stereo analog input (XLR), 4 x single ended stereo analog inputs (RCA), 1 x multichannel single ended analog input (RCA), 1 x microphone input (XLR – Video: 3 x HDMI™

Audio: 5 x Steinway Lyngdorf Digital Links (CAT 5e based), 1 x single ended stereo analog output for secondary audio output, 1 x SPDIF coax digital out- put, 1 x HDMI™ – Video: 1 x HDMI™ – ARC compatible

RS232, Ip, Web interface, Ihiji, Remote Control App on iOS and Android platforms

The Steinway Lyngdorf remote control for stereo and surround sound systems features a rotating wheel crafted from solid, gold-plated or chrome-plated brass and mounted on precision-machined Swiss bearings.

It’s elegance you can touch, integrity you can feel. It provides intuitive and total command of your Steinway Lyngdorf system.

Rotel

The Michi X5 Integrated Amplifier is Performance Redefined packaged in an exquisite industrial design delivering an astounding 600 Watts of Class AB power into 4 ohm speakers even under the most extreme loading conditions featuring an array of source inputs including Analog, Digital, XLR, apt-X Bluetooth, Moving Magnet and Moving Coil Phono Stage.

Line Level Inputs: 10Hz - 100kHz (+0 dB, -0.6 dB)Digital Inputs: 20Hz - 20kHz (0 ± 0.4 dB)Phono Input: 20Hz - 20kHz (+0 dB, -0.2 dB)

Frequency response: 35Hz – 22kHz
Drivers: 2 x 75mm custom full-range polypropylene cone neodymium satellite drivers, 130mm subwoofer
Amplifier: 90W Class AB
Enhancements: Bass, treble, sub level, loudness, 3D audio

Multi-room: Synchronised audio on up to 5 devices
Radio: DAB / DAB+ / FM with RDS (87.5-108MHz) and Internet Radio
Bluetooth: V4.0, SBC, AAC, A2DP, aptX, aptX HD
Wi-Fi: 802.11b/g/n; WEP, WPA & WPA2 security
Ethernet: RJ45
Music services: Spotify Connect, Amazon Music, Deezer, Tidal
Media: Compatible with UPnP™ DLNA media servers; MP3 up to 48kHz 320kbps, AAC up to 96kHz 320kbps, FLAC* up to 24-bit 48kHz, WAV up to 16-bit 48kHz or 24-bit 44.1kHz, WMA up to 44.1kHz 320kbps * FLAC files not supported in Multi-room mode
CD player: CD, CD-ROM, CD-R/RW discs; MP3, WMA & AAC up to 320kbps
Line-in: Stereo RCA (max 2.3Vrms)
MM phono input: Stereo RCA input with integrated RIAA phono stage (up to 8mV)
Digital input: 24-bit 192kHz optical TOSLINK
Line-out: Line-level stereo RCA (2.0Vrms)
Headphone: 3.5mm jack, 25mW into 16-32 Ohm
USB: Fat32 memory stick playback, 5V 1A (5W)
Aerial: Removable telescopic

Remote control: wireless
2m mains power cable
Telescopic aerial
User guide
