Chord Electronics

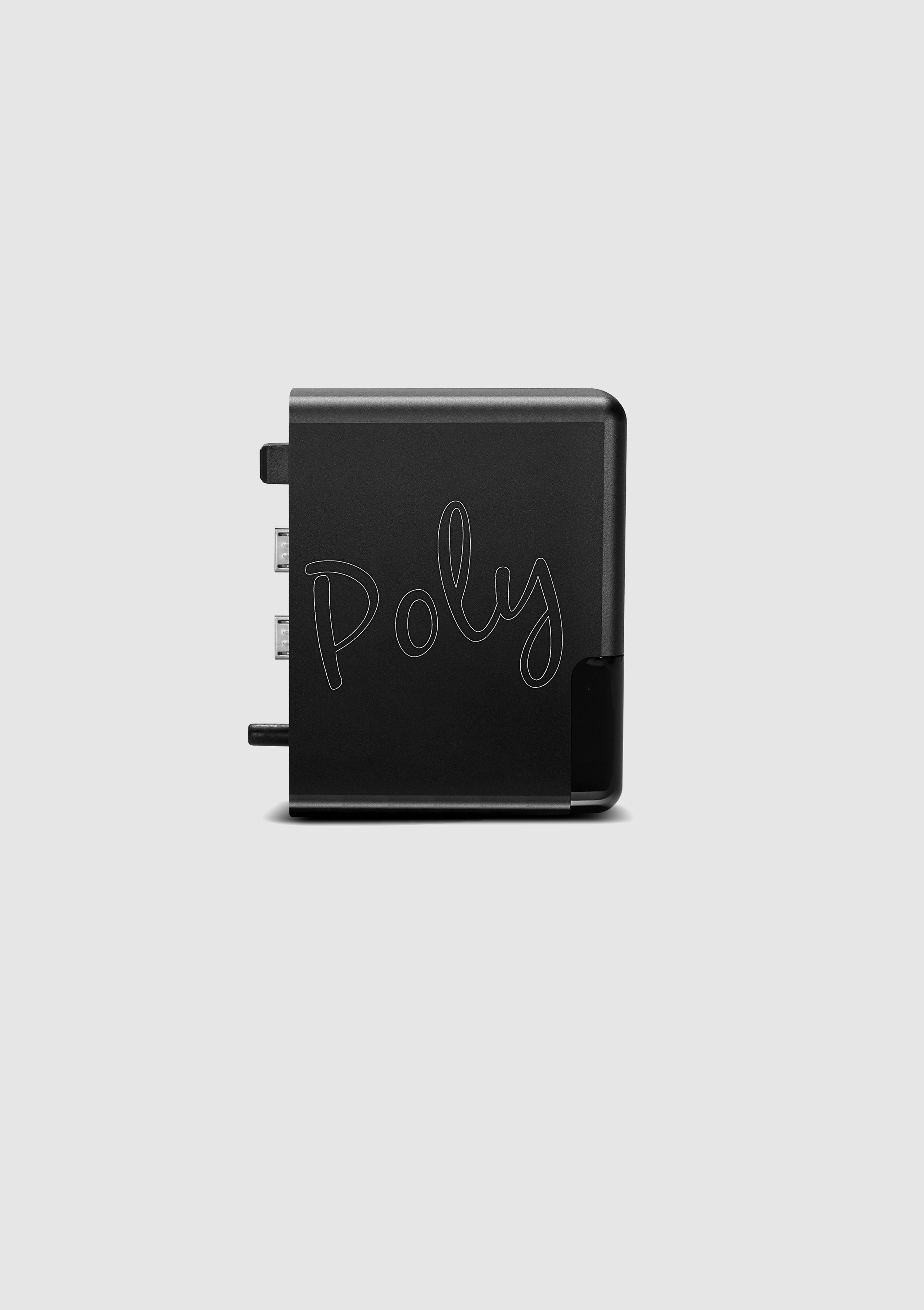

Poly is a portable music streamer/player that combines with Mojo to wirelessly stream from connected devices and playback from its Micro SD, all with smartphone control. It enables hi-fi sound quality at home or on-the-go, with Wi-Fi, Bluetooth, AirPlay and network connectivity and upgrades headphone, car and home audio performance.

Protect both devices with the official Chord Electronics leather case.

Qutest is a standalone DAC whose performance belies its compact dimensions. With DAC architecture based on the award-winning Hugo 2, Qutest offers class-leading digital conversion.

USB Type B (White): 44.1kHz to 768kHz – 16bit to 32bit

2x BNC Coax (Red): 44.1kHz – 384kHz – 16bit to 32bit

1x Dual data mode input (using both BNC coax inputs together): 44.1kHz to 768kHz – 16bit to 32bit

Optical (Green): 44.1kHz to 96kHz – 16bit to 24bit

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit

Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)

Fixed, but selectable between 3v (blue), 2v (green), and 1v (red) via dual press of ‘Filter’ + ‘Input’ upon startup

 Driverless with Mac OS X and Linux, driver required for Windows OS

Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA

THD and noise at 3v RMS: 117dB at 1kHz 300ohms ‘A’ weighted (reference 2.5v)

Updated for the modern age, the ULTIMA 2 carries the very latest Chord Electronics amplifier technology.

with legs

-1dB @ 0.2Hz to 46kHz and -3dB 0.1Hz to 200kHz

Based on 30 years of amplifier-building expertise, Huei offers MM/MC compatibility and integrates turntables to amplifiers.

Benefitting from both Moving Magnet and Moving Coil functionality, Huei offers compatibility with a huge range of cartridges thanks to comprehensive gain and impedance-matching options; Huei’s high- and low-gain switching settings are easily accessible via front-panel controls, introducing welcome flexibility.

Moving coil: 100Ω – 3,700Ω, 12-step user selectable

Moving magnet: 21dB – 42dB, 8-step user selectable

Moving coil: 49dB – 68dB, 8-step user selectable

The TToby range may be ideally suited to compact living environments, but don’t let that fool you. With similar legendary amplification derived from our SPM range, TToby doesn’t compromise on power or providing you with the purest audio experience possible.

100w RMS per channel @ 0.016% distortion into 4Ω

ULTIMA PRE 2 is built to complement stereo systems.

The UTLIMA PRE 3 is a low noise preamplifier.

The UTLIMA PRE 3 is equipped with five analogue inputs (two balanced and three unbalanced) all of which benefit from individual buffering and are filtered against potential ingress from radio frequency interference.

Externally, the PRE 3 benefits from a central circular power sphere flanked by a new volume control and balance/AV bypass selector, both of which benefit from a new ergonomic knob design.

Additional features include an AV bypass, plus a 5 V charging USB Type-A port.

The Qutest System Stand is carefully designed and precision-machined in England from a single billet of aircraft-grade aluminium.

CNC machined aircraft-grade aluminium with black anodising

The 2go streamer/server transforms the abilities of the Hugo 2, adding both Ethernet and wireless streaming, plus 4 TB of microSD card storage to the DAC/pre/headphone amp

In order for 2go to perform as a fully functional streamer, a connection with Hugo 2 (DAC/Preamp/Headphone amp) or 2yu is required.

Internal battery with up-to 10 hrs (approx) playback. Desktop mode activated upon insertion of Micro USB charging cable).

Connect to (allows 2go to connect to an existing 2.4GHz WiFi network) or Hotspot mode (activated within the Gofigure app, which allows 2go to broadcast its own WiFi network with SSID and password in the eventuality that the device cannot connect to a static network).

44.1kHz – 768kHZ (16bit – 32bit) | DSD 64 to DSD 256 (via DoP)

ACC, WAV, FLAC, AIFF, OGG VORBIS, ALAC, WMA, MP3

Initial setup, configuration, and updates

Via free Gofigure app available on iOS and Google Play store

2x Onboard Micro SD card slots (up-to 4TB of total storage)

Roon endpoint, DLNA (server and render), AirPlay, Bluetooth audio (A2DP), Tidal, Qobuz, Internet radio

The 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler.

In order for 2yu to inherit streaming/music transport capabilities or function as an audio interface, a connection with 2go is required.

Micro USB (5v 1amp minimum required) – through 2go

44.1kHz – 768kHZ | DSD 64 to DSD 256 (Dependant on output)

Integrated, automatic downsampling is provided if a higher sample rate is being played than the output can support.

USB Type-A (44.1kHz – 768kHz / DSD 256)

Gold Note

The Gold Note DS-1000 Streaming EVO is their top of the range digital source.

The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.

x AKM AK4493 PCM up to 32bit/768kHz and DSD512

LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps)

1x RCA coaxial PCM (asynchronous up to 24bit/192kHz)

1x AES/EBU balanced PCM (asynchronous up to 24bit/192kHz)

2x TOS-Link PCM (asynchronous up to 24bit/192kHz)

1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz

1 x USB-A port: DSD256 and PCM up to 32bit/384kHz – Formatted in FAT32/NTFS (32Gb max for pen drives)

1 x RCA unbalanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x XLR balanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x 6.3mm Headphone Output on front panel

Goldmund

A convenient wireless hub that connects all the sources – TV, computer, players and audio servers.

In1 RCA S/PDIF.
In2 Toslink optical.
In3 USB Audio Class 2.0 (no driver required on Mac OS X as of v.10.6.4 nor on Linux, driver required only for Windows).Any inputs from 1 to 3 can receive stereo audio encoded signal up to 384 kHz/Bit depth up to 32 compatible DSD over PCM.

4 parallel Digital RCA S/PDIF 2-channel outputs.
1 Wireless outputs 4 channels max.
1 monitor headphone output (on front panel).

Nominal line voltage: 115V or 230 V (switchable).
Input voltage range: +/- 15 %.
Rated power consumption: 11 W.
1,6 A delayed fuse.
ON/OFF power switch key.
Main voltage selector.

Kaleidescape

Kaleidescape is a Movie Server. It is also the best way to watch uncompressed 4K movies standing heads and shoulders above any of the alternatives - Sky, Apple TV, DVD.

The Strata V has two Unique Selling Points!

It is compact, an almost portable version of their other models. It is limited in movie storage but that is its First Unique Selling Point. Just download 10 of your favourite uncompressed movies from the dedicated Kaleidescape website. Then watch them and delete them knowing you can download them again whenever you want as you now stored on your cloud movie library.

The second USP is that, once downloaded, you can store up to 10 movies and then view them without a network connection. So once again, great for holidays, boats and private jets.

External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground

Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)

Lutron RA3 and HomeWorks control over Ethernet

Relative humidity: 20 to 80% (operation) 5 to 90% (storage)

Maximum operating altitude: 10,000ft (3,048m)

Silent in most installs, 17dB(A) when downloading in hot environments

Minimum 2in (5cm) space at the rear MOUNTS (sold separately)

Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space

Wall mount available for mounting behind TV displays

Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p

Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only

Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable

HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)

Digital (coaxial RCA and TOS-link connectors)

Audio formats (Coaxial RCA and TOS-link connectors)

Standalone: Internal 960GB SSD (available storage for ~24hrs of 4K content)

Grouped: Strato V can also access content stored on a Terra when connected and grouped via local network

Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality

View recent HD additions for Strato V in the movie store

Current customers can also view their Strato V compatibility page in the movie store

Lyngdorf

The MP-40 surround sound processor from Lyngdorf Audio offers all the sonic qualities and performance of the flagship processor, the MP-60, in a streamlined design for smaller applications.

12 decoding/up mixing channels, Dolby Atmos®, DTS:X, AURO-3D®, all legacy codecs

Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz


RoomPerfect™, Subwoofer level assistant, 32 x adjustable voicing holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings)

The MP-60 2.1 is an AV amplifier equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect and the unsurpassed quality in digital signal processing.

16 decoding/up mixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs

Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz

RoomPerfect, Subwoofer level assistant, 32 x adjustable voicing holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q

The TDAI-1120 is a small integrated amplifier with room correction and streaming.

Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%

RoomPerfect™, Pre-Equaliser, ICC, 32 x adjustable voicing holding ≤8 filters with adjustable gain and Q

2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm

Mojo 2 is an advanced DAC/headphone amplifier to power your favourite headphones.

Coaxial, dual-data coax, optical, Micro-USB and USB-C

2.7 uV A wt., no measurable noise floor modulation

118 dB stereo separation 1 kHz 300 ohms 2.5 V

Rechargeable LiPo 2200mAh9-hour + playtime and fast-charging via USB

Support for all major file types including

ACC, WAV, FLAC, AIFF, OGG VORBIS, ALAC, WMA and MP3

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz,717.6kHz and 768kHz; DSD via DoP sample rates: DSD64 – DSD256 (Quad-DSD); DSD from SD card

iPhone, iPad, Android phones/tablets, Windows and Mac OS X computers and DAPs

Poly can create its own hotspot where networks/devices/countries don’t support tethering

allows configuration of connected networks (up to 32)
