Gold Note

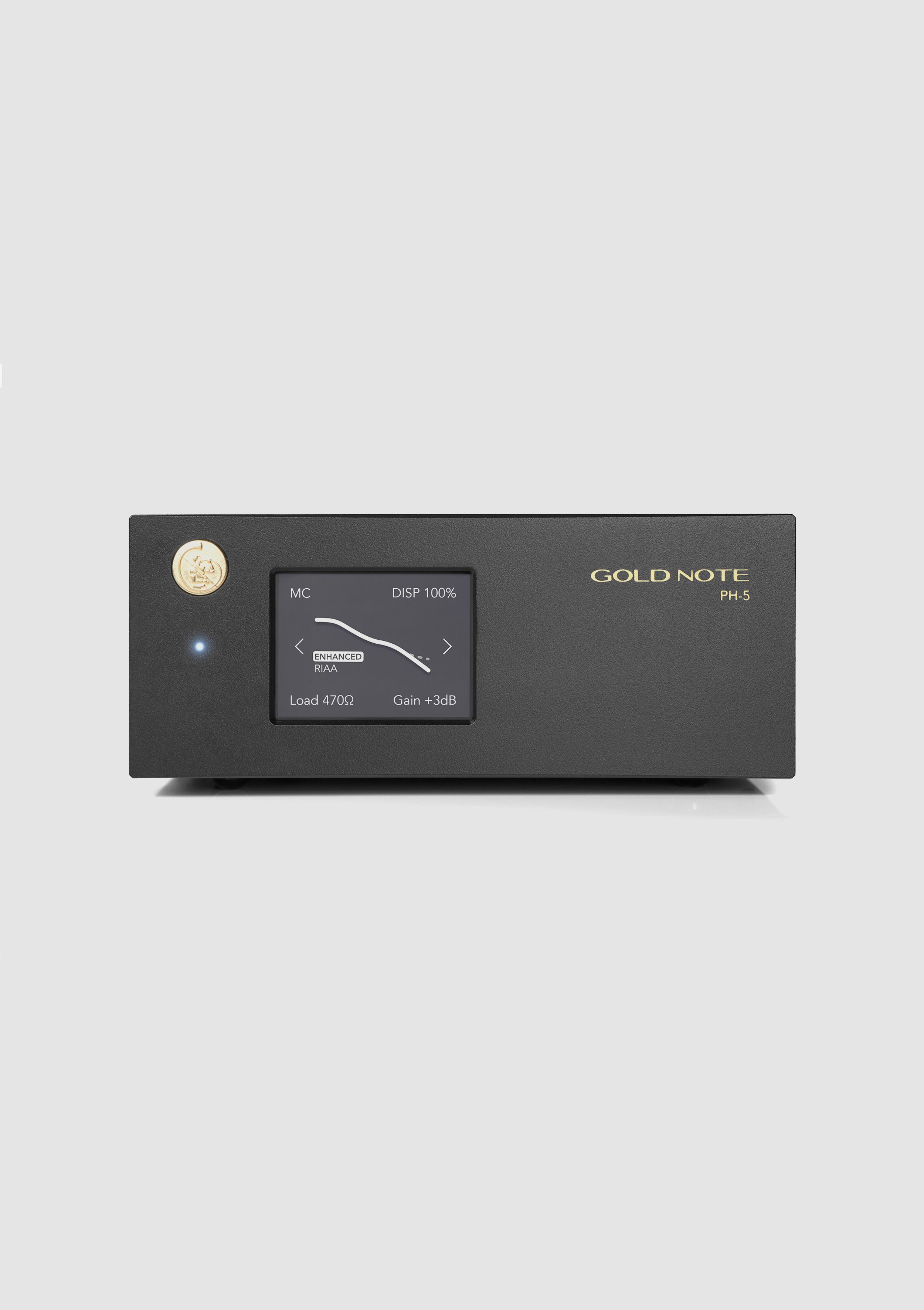

The PH-5 is the latest born at Gold Note’s range of phono stages, designed to deliver the same high quality and performance as the PH-10 and PH-1000, with an affordable price and all the cutting-edge features.

The PH-5 is the first Gold Note product designed with a touchscreen interface: all the settings are easily accessible and changeable and user-friendly display that allows you to select and manage all the options in real time while playing your music.

Housed in an elegantly shaped alloy body, the Machiavelli cartridge offers smoothness and extended dynamics.

The cartridge is available in two models, the Gold made with an output level of 0.4mV and the Red with an output level of 0.5mV.

The Gold Note DS-1000 Streaming EVO is their top of the range digital source.

The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.

x AKM AK4493 PCM up to 32bit/768kHz and DSD512

LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps)

1x RCA coaxial PCM (asynchronous up to 24bit/192kHz)

1x AES/EBU balanced PCM (asynchronous up to 24bit/192kHz)

2x TOS-Link PCM (asynchronous up to 24bit/192kHz)

1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz

1 x USB-A port: DSD256 and PCM up to 32bit/384kHz – Formatted in FAT32/NTFS (32Gb max for pen drives)

1 x RCA unbalanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x XLR balanced (fixed on DS-1000 EVO, variable on DS-1000 EVO LINE)

1 x 6.3mm Headphone Output on front panel

Belt driven Turntable of double isolated 20mm black acrylic plinth, 3mm Stainless Steel board and machines curved Italian hardwood walnut or black painted MDF for high rigidity and frequency control. Comes with B5.1 tonearm, cartridge sold separately

The design of Vasari cartridges has been developed to reach the peak performance of Gold Notes MM cartridges.

Its high-damping body, made of a single machined piece of aluminium 7000 alloys, and its ultra-rigid and light aluminium cantilever, make the Vasari a superb tracker allowing the diamond stylus to extract all the information from the vinyl groove.

Taking its inspiration from the Mediterraneo, this turntable blends tradition with technology to cater for analogue enthusiasts after a next-gen record player.

All of the functions of the turntable can be controlled from the touchscreen display, which makes it possible to finely adjust the speed and torque of the motor to ensure it is perfectly synchronised with the type of LP and music being played. Acrylic DC and B-7 Ceramic arm included

Belt-driven 70 shores rectified belt in EPDM

Aluminium and high-density POM (45mm,7Kg)

The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD, and GAIN adjustments: a fully analogue design, engineered exclusively with the best components to recreate the musical event in the most natural way possible.

It can be controlled by their single knob control with a color display, this rotary joggle allows quick adjustments of any function in real-time during music playback.

45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]

20Hz /20kHz, [Enhanced 20Hz-50kHz] @ +/-0.3dB

The PH-1000 features a class A exclusive discrete components like a class A headphone output, infinite EQ curves with 4 manually adjustable presets, and 14 Gain levels and 12 Load levels.

The PH-1000 has 7 Capacitance options dedicated to MM cartridges,  capable of driving even the most cartridges with perfect synergy. The PH-1000 offers 3 independent inputs, two RCA and one XLR.

PH-1000 / PH-1000 LINE
40dB MM to 65dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]

PH-1000 LITE
40dB MM to 60dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]

2x unbalanced RCA (0.1mV MC up to 8.0mV MM)

18 EQ curves all with Enhanced option (+/- 0.3dB)

Infinite EQ curves with 4 manually adjustable presets (only on PH-1000 / PH-1000 LINE)

MM= 40dB, MC= 60dB with 4 options [0dB, + 3dB, ± 6dB]

20Hz -20kHz ± 0.3dB, Enhanced 20Hz-50kHz ± 0.3dB
