Michell Audio

The Orbe is Michell's flagship turntable, it delivers a true audiophile listening experience. Featuring two levels of isolation, a large 60mm thick vibration damping platter and a sophisticated power supply and motor configuration.

The Gyro SE is a small footprint variation of the Gyrodec that delivers an almost identical performance to its larger sibling. The full-sized acrylic plinth on the Gyrodec has been replaced by a rigid and inert acrylic spyder to support the chassis.

The Gyro SE is Michell's best-selling turntable providing a neutral, reference presentation without taking up too much space. If you are looking for a compact class-leading turntable, look no further.

This package comes complete with standard arm plate, record clamp & unicover, T8 pickup arm and Michell Cusis S Moving Coil cartridge.

with standard arm plate, record clamp & unicover

Three suspension towers are fixed to the acrylic base to hold the suspension springs in place and provide height adjustment for the sub chassis.

Impedance-matched platter with solid brass weights.

The platter material was chosen for its vibration dampening characteristics and because sonically it is a very similar material to vinyl, so it has a very neutral sound characteristic. The brass weights are added to give the platter extra mass and subsequently more momentum when spinning. This greatly improves speed stability and helps keep wow and flutter to a minimum.

The motor unit used to drive the turntable is completely separate to the turntable, meaning it doesn’t touch the turntable in anyway. The only connection between the motor and the turntable is the drive belt that drives the platter. This stops any noise or vibrations created when the motor is running, getting through to the sensitive parts of the turntable.


Hanging on the three suspension springs, this provides a rigid dense platform to mount the main bearing, platter and tonearm assembly, ensuring there is no movement between them, while also acting as a ‘resonance / vibration sink’ drawing away unwanted vibrations from the sensitive elements of the turntable.

Contrary to traditional designs, our main bearing has the point of rotation at the top of the assembly, not at the bottom. This orientation allows us to fully lubricate the inside of the entire bearing while the platter is turning. We achieve this by way of a modified Archimedean screw that we machine into the inside bore of the bearing. The oil is drawn from a reservoir at the base of the main bearing up to the thrust ball at the top, fully lubricating as it goes, it then returns to the reservoir via a waste hole drilled into the bearing spindle. Lubricating the precision parts of the main bearing in this way means that any potential for noise or vibration created by the rotation of the platter is avoided.

The solid aluminium feet of the turntable are shaped so the area in contact with the supporting surface is very small, this is done to minimise the transfer of vibrations from the supporting furniture into the turntable.

Apollo phono stage delivers exceptional audio performance for discerning audiophiles, the true allure of vinyl lies in the richness and warmth of analogue sound. To fully appreciate every detail and nuance, the right equipment is essential. While a premium turntable, tonearm, and cartridge are vital, the quality of your phono stage is what ensures the integrity of the music.

This package comes complete with Apollo & Muse phono stage and power supply.

High-quality silver-plated OFC copper conductors: ensuring an optimal signal path and durability

Cotton fibre wrap: reduces mechanical noise

AL-foil mylar separators: shields the individual conductors to maintain signal quality

High-density tinned copper shielding: minimises signal loss from high-frequency interference

High quality choralloy plated XLR connectors

RIAA Eq accuracy: 20Hz–20kHz < +/- 0.1dB

Mains voltage, factory set: 100V–240V 50/60 Hz

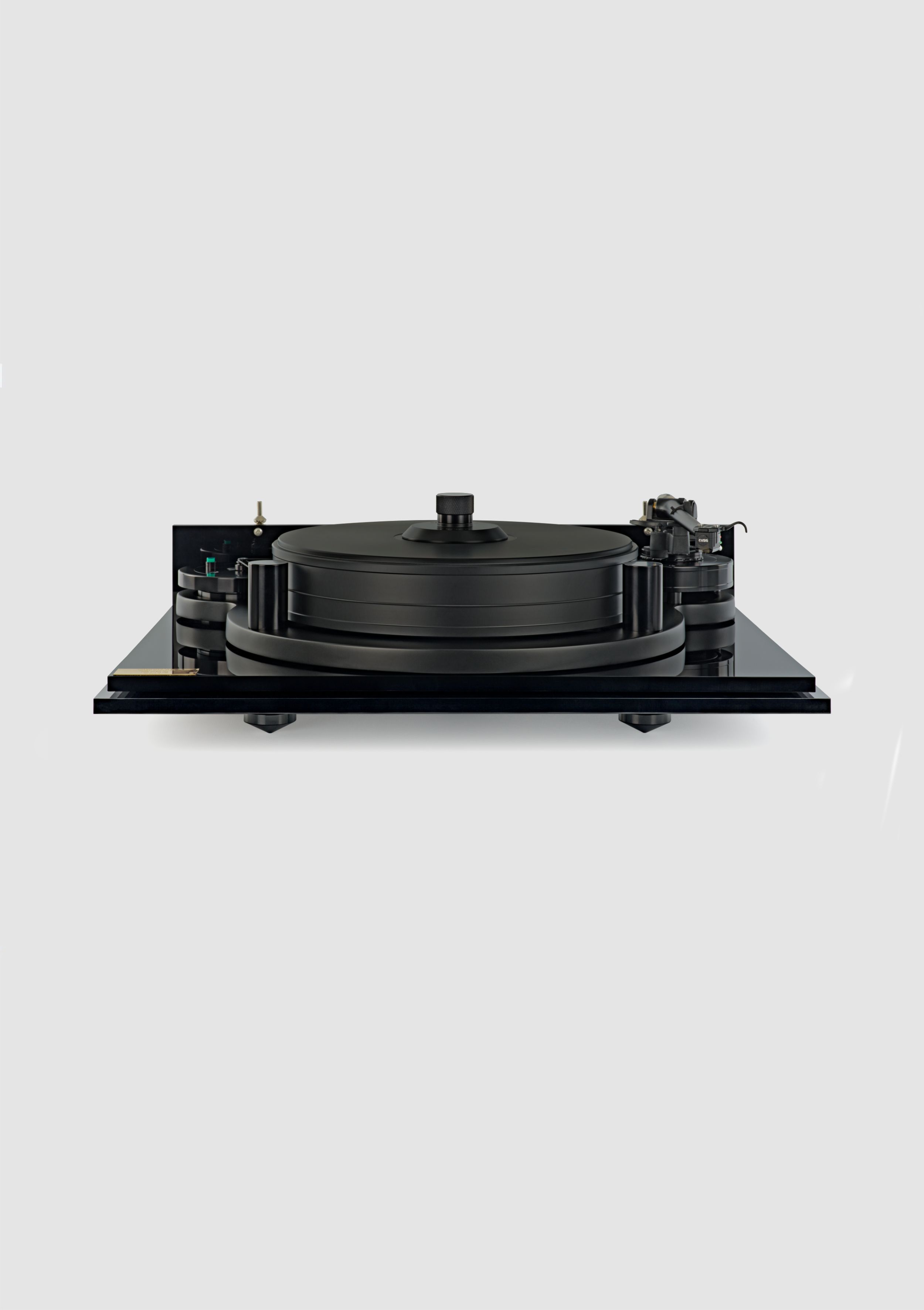

The Michell Orbe SE delivers a reference quality listen identical to the Orbe but in a smaller package. The Orbe SE is renowned for delivering a high-end, neutral experience.

With two layers of isolation, a 60mm thick vibration damping platter, a sophisticated power supply and motor configuration, the Orbe SE simply elevates music to high levels.

Three suspension towers are fixed to the secondary acrylic base to hold the suspension springs in place and provide height adjustment for the sub chassis.

The platter material was chosen for its vibration dampening characteristics and because sonically it is a very similar material to vinyl, so it has a very neutral sound characteristic. The extra mass of the Orbe platter gives it great momentum when spinning aidi﻿ng in speed stability.

The motor unit used to drive the turntable is completely separate to the turntable, meaning it doesn’t touch the turntable in anyway. The only connection between the motor and the turntable is the drive belt that drives the platter. This stops any noise or vibrations created when the motor is running, getting through to the sensitive parts of the turntable.

The most sophisticated power supply we manufacture, the Orbe controller uses a large toroidal transformer, Never Connected™ circuitry and servo motor control technology to make sure the platter is always turning at the correct speed. All the time the platter is turning, the motor is reporting back what the RPM is, if this changes even slightly, the controller automatically adjusts its output to correct the change. The result is that the speed stability of an Orbe turntable is absolutely rock solid.

The Orbe clamp is a screw-down design, which allows you to exert more force on to the vinyl when clamping it to the platter, than our standard clamps allow. This further helps flatten warped and uneven vinyl and eliminate resonance in the vinyl disk.

The Gyrodec turntable was first introduced in the early 1980s and employed a design that outperformed any other turntable at the time. Utilising a hanging pendulum-style sub-chassis with an isolated drive motor, the Gyrodec literally turned turntable design on its head and influenced the future of vinyl playback.

Although the modern Gyrodec may look very similar to the original 1980s design, the current Gyrodec is far more sophisticated. Everything from the motor and power supply to the platter and main bearing has been redesigned and improved to ensure the performance and reliability of the turntable remains class-leading.

This package comes complete with a standard arm plate & record clamp, T8 pickup arm and Michell Cusis S Moving Coil cartridge.

with a standard arm plate & record clamp

Contrary to traditional designs, our main bearing has the point of rotation at the top of the assembly, not at the bottom. This orientation allows us to fully lubricate the inside of the entire bearing while the platter is turning. We achieve this by way of a modified Archimedean screw that we machine into the inside bore of the bearing. The oil is drawn from a reservoir at the base of the main bearing up to the thrust ball at the top, fully lubricating as it goes, it then returns to the reservoir via a waste hole drilled into the bearing spindle. Lubricating the precision parts of the main bearing in this way means that any potential for noise or vibration created by the rotation of the platter is avoided.


This provides a rigid non resonant surface to fix the suspension system to.

Impedance-matched platter with solid brass weights

The turntable comes with a hinged clear acrylic lid to protect the turntable from dust and damage. The hinges are made in two parts that allow the lid to be easily removed if required.

Supplied with a standard record clamp, this helps flatten warped or uneven vinyl and reduce resonance within the vinyl disk.

Pro-Ject

The ultimate sub-chassis turntable for the 21st century

The transparent acrylic plinth stands on three individually height-adjustable TPE-damped aluminium cones and carries the motor and the sub-chassis. The sub-chassis, made of Corian, rests on three magnetic fields. A magnetic sub-chassis suspension system avoids parasitic noise normally caused by conventional spring mechanism. A supplied spirit level allows easy adjustment of the sub-chassis. A quiet running AC motor unit drives the platter’s outside edge via a belt. It does incorporate an advanced DC-driven motor control, that ensures perfect speed stability and electronic speed change.

RPM 5 Carbon utilises a radical concept with a lot of innovations, that originate from its big brother RPM 9 Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9“ Evo tonearm, which is made from carbon fibre is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances.

The RPM 5 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.

The X2 B comes with mini XRL and RCA outputs and with our standard semi-balanced Connect it Phono E RCA cable. By upgrading it to our fully balanced mini XLR to mini XLR version (available separately) and using a balanced phono stage, like our Phono Box S3 B or DS3 B, you are fully set-up for the True Balanced experience. This leads to increased dynamics, less noise and improved signal to noise ratios. You can imagine it, like hearing parts of your music that literally were not there before.

15volts DC /0,8A power supply, Dust cover, Connect it E Phono cable, feltmat

Juke Box E1 is a record player, phono stage, BT receiver, line pre-amplifier and power amplifier in one, requiring only a pair of speakers to make a complete system. If you thought that a starter turntable system is complicated to set up, Juke Box E1 proves the contrary. This belt-drive deck offers the fastest possible installation process because it comes pre-adjusted out of the box and offers superb sound quality. Tracking force and anti-skating is pre adjusted for the pre-mounted Ortofon OM 5E cartridge.

Speakers, Line out (fixed, record player signal only), Phono out

300mm anti-resonant ABS polymer with feltmat

Power supply, dust cover, remote control, feltmat, singles adapter

The T1 tonearm is a new model, based on previous Pro-Ject designs. It is now a complete one-piece design, entirely made out of aluminium. Together with the low friction bearings, this guarantees accuracy in use. The integrated headshell won‘t cause any additional vibrations either. The belt driven motor is attached to a newly designed sub-platter, which is mounted into an ultra-precise 0.001mm main bearing with a hardened stainless steel axle and brass bushing. Alongside the electronically controlled motor system, the T1 is therefore able to ensure a smooth, anti-resonant rotational platform for the tonearm and cartridge to ride across.

The Classic meets the 175 VPO to melt design-ideas

The new Classic Evo is based on the successful EISA Award winner Pro-Ject.

Separated by 3 pin points the acrylic bases of the Orbe not only provide a rigid non resonant surface to fix the suspension system to, they also create a very efficient isolation platform to help eliminate structural feedback.

The platter material was chosen for its vibration dampening characteristics and because sonically it is a very similar material to vinyl, so it has a very neutral sound characteristic. The extra mass of the Orbe platter gives it great momentum when spinning aiding in speed stability.
