Steinway Lyngdorf

The LS series is the number one choice for larger rooms and spaces with rows of elevated seats. The series features an innovative line source approach incorporating floor-to-ceiling stackable speakers and boundary woofers. This allows sound to propagate over long distances, thus ensuring tonal consistency by reducing echoes, especially in large rooms. Line source technology means that every seat in the listening space has the same volume level and offers the same sound experience, from the front to the rear of the room.


Steinway Lyngdorf commits to a new level of support for the Digital Cinema Initiative (DCI) with a collection of speakers designed for the ultimate Hollywood cinema and large format screening rooms. The X speakers are made specifically for both private and commercial projects that demand the highest possible performance. Designed for dedicated in-wall use, the X speakers are based on the already high-performing In-Wall Series but offer a more powerful level of performance.

The Model D is a full range floor-standing dipole speaker which emits sound from both front and back. Unrestricted by the vibrations of conventional cabinets, it interacts with the room like a Steinway & Sons grand piano does, resulting in extremely open and life-like musicality, with no resonance and no coloration.

This full-range loudspeaker is designed to provide the legendary Steinway & Sons performance in a small package without the need for a separate woofer. The Steinway & Sons Model O functions impeccably as a surround speaker or a simple stereo setup, and its small footprint makes it a perfect alternative to wall mounted speakers.

This full range loudspeaker is designed for creating the holographic stereo reproduction of the Steinway & Sons Model D speakers through use of the dipole speaker concept – all in a smaller package.

The Steinway & Sons Model B not only looks powerful with its impressive line-up of drivers, but together with the digital crossover and true quad-amplification of the 4 x 400-watt digital amplifier, Steinway & Sons Model A2, the resulting sound reproduction is nothing short of stunning.

Steinway & Sons P300 2.1 surround sound processor from Steinway Lyngdorf is built for the demanding connoisseur, who requires the ultimate performance in immersive formats as well as stereo. With the new state-of-the-art HDMI and decoder boards, the P300 2.1 pass-through 4K-60Hz video with full decoding of 16 native channels and support of up to 256 speakers – all with RoomPerfect™ room correction and intelligent bass management.

Audio: 5 x HDMI™ (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (192kHz/24bit), 3 x S/P-DIF coaxial inputs (192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™, 1 x balanced stereo analog input (XLR), 4 x single ended stereo analog inputs (RCA), 1 x multichannel single ended analog input (RCA)
Video: 5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode ALLM) support. accepts HDR, Dolby Vision™ and HLG

Audio: 5 x Steinway Lyngdorf Digital Links (CAT 5e based), 1 x single ended stereo analog output for secondary audio output (Zone 2), 1 x SPDIF coax digital stereo output for secondary audio output (Zone 2 / Fix: 96kHz/24bit)
Video: 2 x HDMI™ (2.1b, eARC compatible)

Frequency response: ±0,5dB from 20 to 20,000 Hz

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB connectors (backup, updates + FAT32 media storage), 1 x SD card slot (backup – storage for system software and settings)

Steinway Lyngdorf commits to a new level of support for the Digital Cinema Initiative (DCI) with a collection of speakers designed for the ultimate Hollywood cinema and large format screening rooms.

The X speakers are made specifically for both private and commercial projects that demand the highest possible performance. Designed for dedicated in-wall use, the X speakers are based on the already high-performing In-Wall Series but offer a more powerful level of performance.

The Model M series is anything you want it to be. For style-conscious audio enthusiasts who prefer a discreet, customizable installation, the Model M delivers.

The system’s slim and stylish architectural speakers can be mounted on wall, semi on wall, or in wall. Whether a large home theater or an intimate living room, your environment reflects your design style. The Model M just makes it sound better.

The In-Wall series speakers are specifically designed to be placed behind acoustically transparent screens, fabric panels, and metal mesh grills. With invisible presence, the In-Wall series offers exceptional performance, versatility, and unbeatable appeal.

This series can be mixed-and-matched with any other item in our product range while maintaining the outstanding performance of each individual component.

The In-wall series speakers are specifically designed to be placed behind acoustically transparent screens, fabric panels, and metal mesh grills with an invisible presence.

3 x Air Motion Transformer, Kapton foil, neodymium magnet


3 x 5,25”, anodized aluminum cone, neodymium magnet


2 x 10” aluminum cone, 4-layer voice coil, neodymium magnet

P100, P200, P300: A1 or A2 amplifiers, 4 x 400 watt SP-1: A2 amplifier, 4 x 400 watt.
Special requirements apply, please get in contact.

4 (left channel, right channel, center channel, dual woofers)

Woofer/midrange: Digital, stored in processor (200 Hz, 4th order) Midrange/tweeter: (2500 Hz, 4th order)

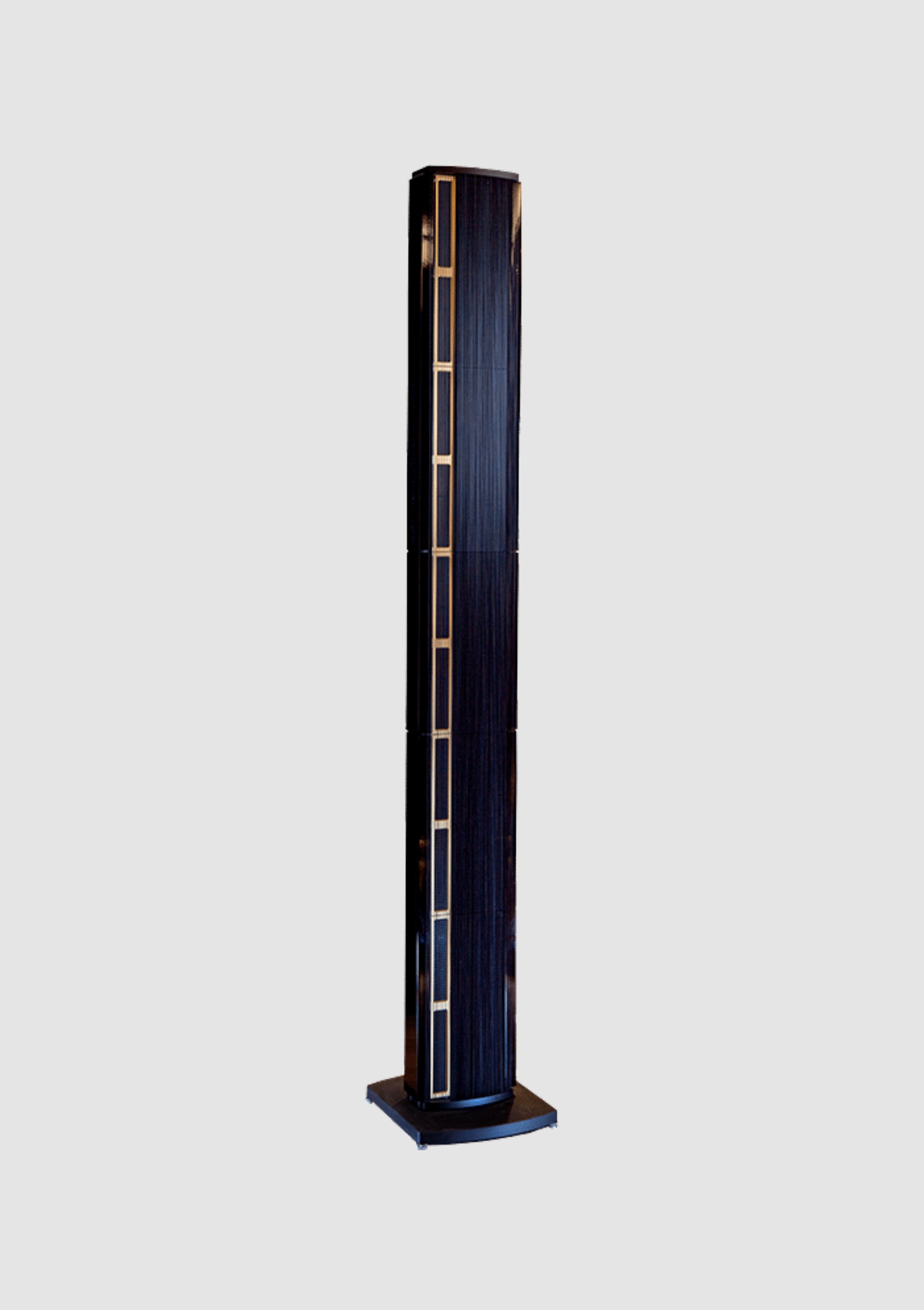

The LS series is the number one choice for larger rooms and spaces with rows of elevated seats. The series features an innovative line source approach incorporating floor-to-ceiling stackable speakers and boundary woofers.

This allows sound to propagate over long distances, thus ensuring tonal consistency by reducing reflections from ceiling and floor, especially in large rooms. Line source technology means that every seat in the listening space has almost the same volume level and offers the same sound experience, from the front to the rear of the room.

LS-Concert 1
