Previous Product CD5

A15

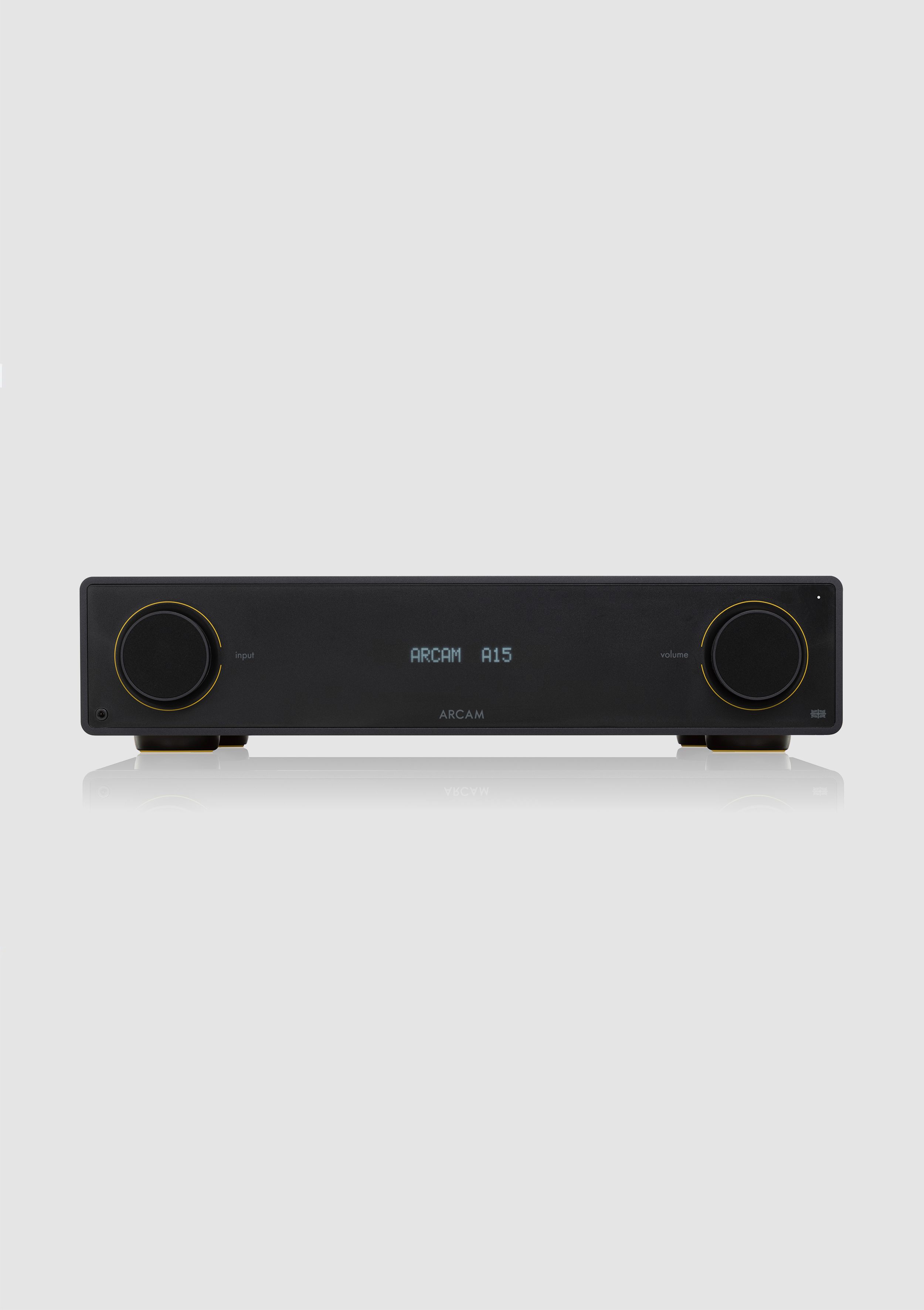

Integrated amplifier
by Arcam

Enquire
Robert Taussig

The ARCAM A15 is the power house, with 80 Watts of output per channel. It is perfect for listening with tower speakers, in larger rooms, and more exuberant listening volumes.


Arcam

A15

Enquire

Technical Specifications

Weight

10 kg (22.05 pounds)

Dimensions

Width: 43.1 cm (16.97 inches)

Height: 9.8 cm (3.86 inches)

Depth: 34.4 cm (13.54 inches)

Power output

  • (0.5% THD), per channel
  • 2 channels driven, 20Hz - 20kHz, 8Ω 80W
  • 2 channels driven, 1kHz, 4Ω 120W
  • Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%

Analogue Inputs

  • Number of inputs 3 (RCA pairs)
  • Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
  • Frequency response 20Hz—20kHz ± 0.2dB

Phono (MM) Input

  • Input impedance 47kΩ + 100pF
  • Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
  • Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB

Digital Inputs

  • Supported Sample Rates (kHz)
  • Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
  • Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1
  • Bit depths (bit) 24, 16
  • Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB
  • Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB

Headphone Output

  • Maximum output level (RMS) into 32Ω/300Ω 2.5V/5Vrms
  • Load range 16Ω - 2kΩ

General

  • Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
  • Power consumption (maximum) 500W
  • Power consumption (standby) <0.5W

Supplied accessories

  • Mains lead(s)
  • Remote control with 2 x AAA batteries
  • Quick Start Guide
  • Important Safety Instructions
